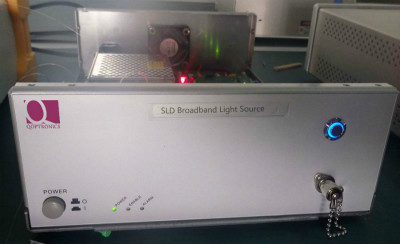

1050nmSLD宽带光源
PDF资料下载
1050nmSLED宽带光源，中心波长1050+/-10nm，带宽超过60nm，功率5-20mW可选，其他波长激光器信息我们咨询
Parameters | Unit | |
Part No. | - | LQ-SLED-1050-P-PW-SP |
Central wavelength | nm | 1050±10 |
-3dB spectral width | nm | ≥60 |
Output power | mW | ≥5，10，20，etc |
Spectral density stability | dB | ≤±0.05dB/15 min |
Output power short-term stability | dB | ≤±0.01dB/15 min |
Output power long-term stability | dB | ≤±0.03dB/8 hour |
Operating mode | - | CW(extemal modulation is optional) |
Fiber pigtail | - | Single mode 1060 fiber |
Output connector | - | FC/UPC or FC/APC， etc |
Operating temperature | ℃ | 0 ~ 40 |
Storage temperature | ℃ | -20 ~ 70 |
Power supply | - | +5V DC; >500mA; △V＜1%(Module); AC 110/220V±10%， 50Hz， 20W(Desk-top) |
Dimensions (L×W×H) | mm | 90×70×19 Module; 320×220×90 Benchtop |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature， CW.
2. Test condition: temperature variation ±2℃， CW.
1050nm SLED Broadband Light Source Spectrum 10mW @1052nm (above)
1050nm SLED Broadband Light Source Spectrum 20mW @1063nm (above)
Order Information：LQ-SLED-1050-P-PW-SP
P:Package，B-Benchtop，M-ModulePW: Output power in mW， example:5-5mW，10-10mW，20-20mWSP: Feedback protection， 0-None，1-Yes
