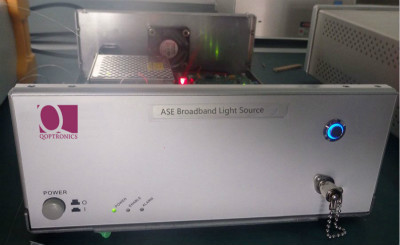

ASE C+L波段宽带光源
PDF资料下载
量青光电C+L波段ASE宽带光源，波长覆盖1525-1607nm，GFF增益平坦滤波器可选配，功率10-21dBm。
Parameters | Unit | |||
Part No. | - | LQ-ASE-C+L-P-PW-SP(GFF) | ||
Central wavelength | nm | 1525~1607 | 1528~1600 | |
GFF | No | GFF | ||
Flatness | dB | <7 | <2 | |
Power spectral density | dBm/nm | ≥-17 | ≥-17 | |
Output power | dBm | 10~21 | 7~17 | |
Spectral stability | dB | ≤±0.05dB/5 min | ||
Output power short-term stability | dB | ≤±0.02dB/15 min | ||
Output power long-term stability | dB | ≤±0.03dB/8 hour | ||
Degree of Polarization | DOP | ≤5% | ||
Operating mode | - | CW | ||
Fiber pigtail | - | Single mode SMF-28 | ||
Output connector | - | FC/UPC or FC/APC， etc | ||
Operating temperature | ℃ | 0 ~ +65 (-20 ~ +65 available) | ||
Storage temperature | ℃ | -20 ~ 70 | ||
Relative humidity | % | 20~80 | ||
Power supply | - | 110/220V AC， +5V or +3.3V DC; >500mA; △V＜1% | ||
Maximal Power Consumption | W | 10 | ||
Dimensions (L×W×H) | mm | 100×80×20 Module; 320×220×90Benchtop | ||
2℃ 1. Test condition: fixed temperature， CW.
2℃
Order Information：LQ-ASE-C+L-P-PW-SP(GFF)
P:Package，B-Benchtop，M-Module
PW: Output power in mW， example:1-1mW ，5-5mW，10mW
SP: Feedback protection， 0-None，1-Yes
