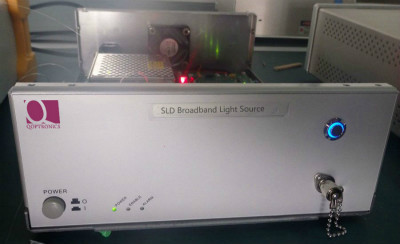

1270nmSLD宽带光源
PDF资料下载
1270nmSLED宽带光源，中心波长1270nm，波长覆盖1200-1340nm，输出功率≥18mW，光谱密度≥-40dBm/nm，激光器或者光源可选，同时提供OEM服务。
Parameters | Unit | |
Part No. | - | LQ-SLED-1270-P-PW-SP |
Central wavelength | nm | 1270 |
Spectral width | nm | 1200~1340 |
Output power | mW | ≥18 |
Spectral density | dBm/nm | ≥-40 |
Ripple | dB | ≤0.35 |
Spectral density stability | dB | ≤±0.08dB/15 min |
Output power short-term stability | dB | ≤±0.05dB/15 min |
Output power long-term stability | dB | ≤±0.1dB/8 hour |
Operating mode | - | CW |
Fiber pigtail | - | Single mode SMF-28 |
Output connector | - | FC/UPC or FC/APC， etc |
Operating temperature | ℃ | 0 ~ 40 |
Storage temperature | ℃ | -20 ~ 70 |
Power supply | - | AC 110/220V±10%， 50Hz， 20W |
Dimensions (L×W×H) | mm | 90×70×19 Module; 320×220×90 Benchtop |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature， CW.
2. Test condition: temperature variation ±2℃， CW.
Order Information：LQ-SLED-1270-P-PW-SP
P:Package，B-Benchtop，M-ModulePW: Output power in mW， example:1-1mW，18-18mW
SP: Feedback protection， 0-None，1-Yes
