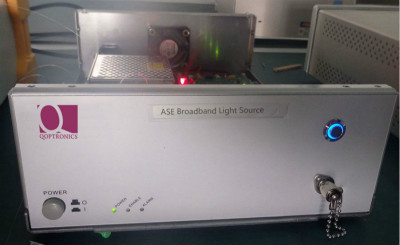

1180nmSLD宽带光源
PDF资料下载
1180nm SLED 宽带光源，中心波长1180nm，带宽≥25nm，输出功率1mW，激光器或者光源整机可选，按需提供OEM服务。
Parameters | Unit | |
Part No. | - | LQ-SLED-1180-P-PW-SP |
Central wavelength | nm | 1180 |
-3dB spectral width | nm | ≥25 |
Output power | mW | 1 |
Ripple | dB | ≤0.15 |
Output power short-term stability | dB | ≤±0.05dB/15 min |
Output power long-term stability | dB | ≤±0.1dB/8 hour |
Operating mode | - | CW |
Fiber pigtail | - | Single mode SMF-28 |
Output connector | - | FC/UPC or FC/APC， etc |
Operating temperature | ℃ | 0 ~ 40 |
Storage temperature | ℃ | -20 ~ 70 |
Power supply | - | +5V DC; >500mA; △V＜1%(Module); AC 110/220V±10%， 50Hz， 20W(Desk-top) |
Dimensions (L×W×H) | mm | 90×70×19 Module; 320×220×90 Benchtop |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature， CW.
2. Test condition: temperature variation ±2℃， CW.
Order Information：LQ-SLED-1180-P-PW-SP
P:Package，B-Benchtop，M-ModulePW: Output power in mW， example:1-1mW
SP: Feedback protection， 0-None，1-Yes
