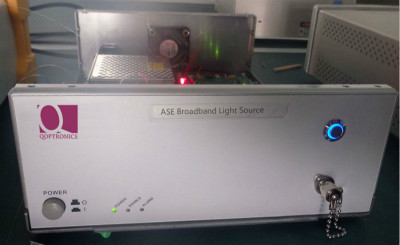

980nmASE宽带光源
PDF资料下载
量青光电980nmASE光源，输出功率5mW，DOP≤5%
Parameters | Unit | |
Part No. | - | LQ-ASE-980-P-PW-SP |
Central wavelength | nm | 960~1000 |
Power spectral density | dBm/nm | ≥-17 |
Output power | mW | 5 |
Spectral stability | dB | ≤±0.05dB/5 min |
Output power short-term stability | dB | ≤±0.02dB/15 min |
Output power long-term stability | dB | ≤±0.03dB/8 hour |
Degree of Polarization | DOP | ≤5% |
Operating mode | - | CW |
Fiber pigtail | - | Single mode SMF-28 |
Output connector | - | FC/UPC or FC/APC， etc |
Operating temperature | ℃ | 0 ~ 40 |
Storage temperature | ℃ | -20 ~ 70 |
Relative humidity | % | 20~80 |
Power supply | - | +5V DC; >500mA; △V＜1%(Module); AC 110/220V±10%， 50Hz， 20W(Desk-top) |
Dimensions (L×W×H) | mm | 90×70×19 Module; 320×220×90 Benchtop |
Remark: Stability is tested at room temperature 25±2℃ after pre-heating 30 minutes.
1. Test condition: fixed temperature， CW.
2. Test condition: temperature variation ±2℃， CW.
Order Information：LQ-ASE-980-P-PW-SP
P:Package，B-Benchtop，M-Module
PW: Output power in mW， example:1-1mW ，7-7mW，
SP: Feedback protection， 0-None，1-Yes
